Ridged Slats®

$42.00 – $100.00

Ridged Slats Single Wall Bottom-Locking

View BrochureDownload Brochure

                                    Discounts for bulk purchases

                                                FREE Shipping!

1 Bundle = 10 linear feet
12-67-1516-3031-5051-100101-180181-220
3 Ft$46.00$41.00$36.00$34.00$32.00$30.00$28.00$25.00
4 Ft$50.00$44.00$40.00$38.00$36.00$34.00$32.00$29.00
5 Ft$57.00$51.00$48.00$46.00$44.00$42.00$40.00$37.00
6 Ft$70.00$64.00$59.00$57.00$55.00$53.00$51.00$48.00
7 Ft$85.00$77.00$69.00$67.00$65.00$63.00$61.00$58.00
8 Ft$95.00$88.00$79.00$77.00$75.00$73.00$71.00$68.00

Discounts appear in the cart

SKU: N/A

Description

Our team can help improve the privacy and look of your chain link fence with our attractive, economical, and durable Ridged Slats®. Each box contains 82 slats and covers up to 10 linear feet. Also, included in each box are 3 Viper Channel™ pieces 42” in length (allowing for 10’ of coverage with 6” for spare). These single-wall, bottom-locking Ridged Slats® come in a variety of colors.

MATERIALS

Ridged Slats® are made from high-density polyethylene (HDPE), color pigments, and ultra violet (UV) inhibitors specifically designed to retard the harmful effects of the sun and lengthen the life of the product.

SIZE

Each slat measures approximately 1-¼ inches wide with the length being approximately 3 ½” shorter than the overall height of the fence, (e.g. 6’ slats are 68.5”). These vertical privacy inserts add approximately 85 percent privacy to regular 2” diamond, 11-gauge chain link fabric. They also work with 9 or 11 ½ gauge chain link fabric. The diamond is measured from inside to inside of each parallel side. The larger the diamond, the less privacy achieved.

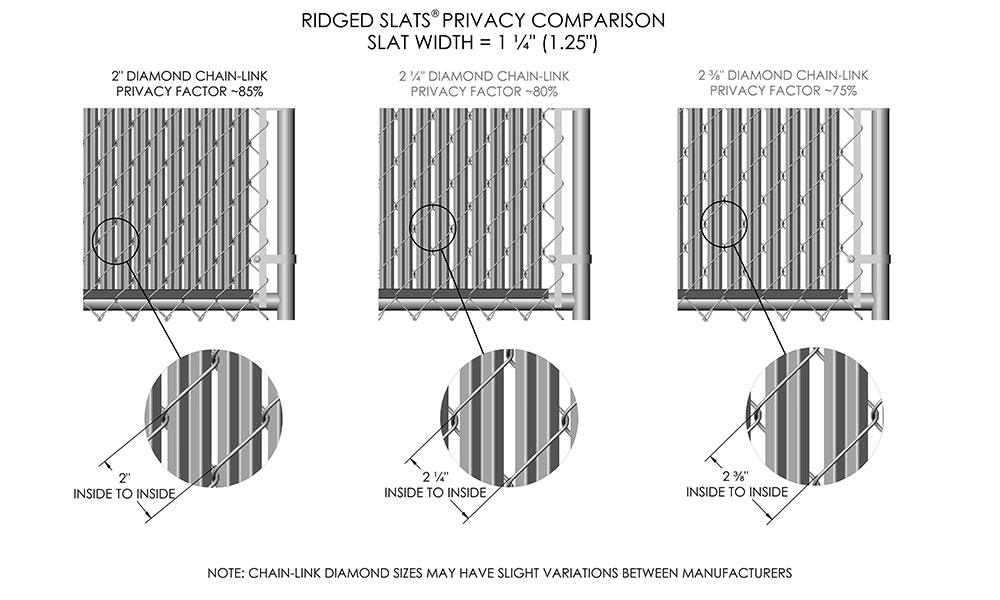

Ridged Slats® Privacy Comparison, Slat Width = 1 ¼ inch (1.25 inch). 2 inch diamond chain-link Privacy Factor ~85%, 2 inches inside to inside. 2 ¼ inch diamond chain-link Privacy Factor ~80%, 2 ¼ inches inside to inside. 2 3/8 inch diamond chain-link, Privacy Factor ~75%, 2 3/8 inches inside to inside. Note: Chain-link diamond sizes may have slight variations between manufacturers

MAINTENANCE

Simply wash with water or high pressure water.

DURABILITY

Extremely durable and resistant to: severe weather conditions, sand, saltwater, alcohol, most acids, alkaline, ammonia, petroleum distillates, and common environmental pollutants. For details on the Limited 30-Year Warranty, simply click on the warranty emblem below.
30 year limited warranty

INSTALLATION

Installation of Ridged Slats® is very simple and requires no special tools. Slats easily slide down vertically through the chain link and lock into the Viper Channel™ Locking System. Each box includes 3 Viper Channel™ pieces 42” in length, allowing for 10’ of coverage with 6” for spare. These channels are attached to installation instructions and an ‘orange’ ribbon, which extends out the end of the box for easy retrieval. See the installation diagram below

Step 1: Insert Viper Channel™ horizontally in first full diamond at bottom of fence with open side up. Step 2: Insert Ridged Slats® with interlocking notch downward. Slat engages and interlocks with Viper Channel. Step 3: Push the Ridged Slats into the Viper Channel to lock in place.

Additional information

Weight N/A
Dimensions N/A
Color

White, Gray, Beige, Redwood, Brown, Green, Black, Royal Blue, Sky Blue
Height

3 Ft, 4 Ft, 5 Ft, 6 Ft, 7 Ft, 8 Ft
